SCOPE
LABORATORY COMPRESSION MOLDING MACHINE WITH HEATING FACILITY, FOR PVC AND POLYMER . PERFECT MACHINE FOR LABORATORY TESTING IN ORDER TO PREPARE TEST MOLDS / SPECIMEN FOR PERFORMING THE QUALITY CONTROL CHECK OF SAMPLES UNDER OBSERVATION.

LOW COST MACHINE HEPLS THE USER TO CHECK THE QUALITY PARAMETERS OF SAMPLES. THIS MACHINE IS SUITABLE FOR PVC, POLYETHELENE, MULTIPLE THERMOSETTING AND THERMO PLASTIC COMPOUNDS.
HIGH TEMPERATURE AND PRESSURE RANGE HELPS US TO REDUCES THE EFFORTS AND TIME CONSUMPTION ON SAMPLE MOLD PREPERATION. THE PROCESS OF HEATING, MELTING AND FORMING A DESIRED SHAPE OF THE SAMPLE, AS PER MOLD HELPS TO MIX THE COMPOUND UNIFORMLY*, WHICH ALSO REDUCES THE CHANCES OF ERRORS SUPPOSED TO BE HAPPENED DURING THE TESTING OR ON THE TEST RESULTS.

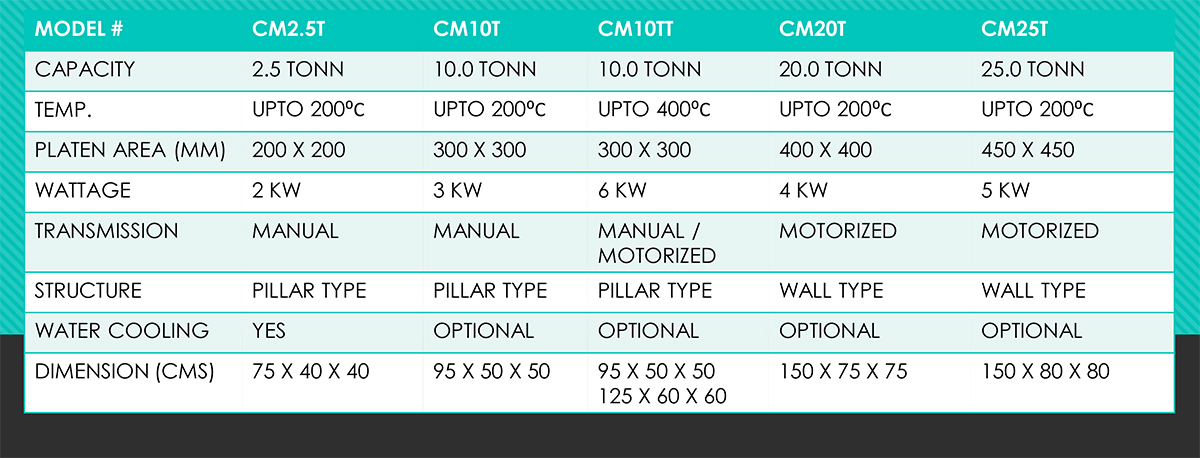

CAPACITY

GENERAL DESCRIPTION
DIGITAL TEMPERATURE CONTROLLER IS PROVIDED ON THE PANEL WITH LINE AND LOAD INDICATORS.
PROVISION OF INCREASING OR DECREASING THE PRESSURE, AS PER MODEL.
UPPER PLATEN CONNECTED WITH THE DAYLIGHT SCREW.
LOWER PLATEN FITTED ON A HYDRAULIC JACK.
THERE ARE INDIVIDUAL HOLES ON THE BOTH PLATENS TO OBSERVE THE TEMPERATURE INDEPENDANTLY.
FITTED WITH PRESSURE LOCK VALVE.
ANALOG DIAL GAUGE FOR READING THE RUNNING PRESSURE.
TEMP. RANGE UPTO 400 ⁰ C WITH SSR BASED HEATING CONTROL.
WE RESERVE THE RIGHT TO MODIFY THE SPECIFICATION WITHOUT PRIOR NOTICE.

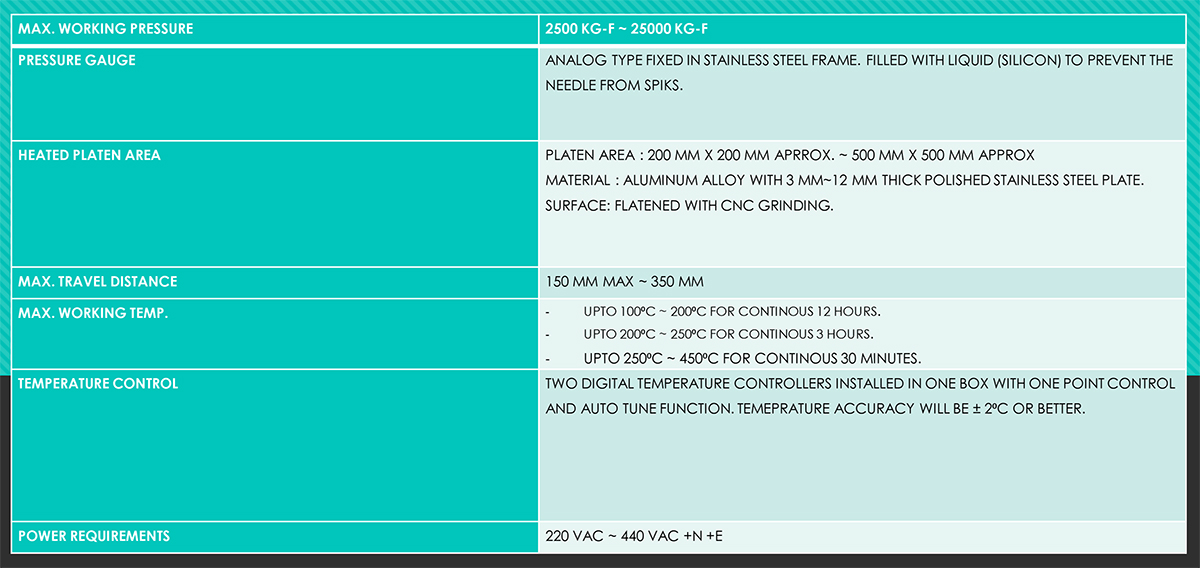

TECHNICAL SPECIFICATION
