LABORATORY SLICING MACHINE FOR CROSSLINKED ETHYLENE THERMOPLASTICS AS REQUIRED TO PREPARE TEST SPECIMENS
SCOPE :
Laboratory Slicing Machine with gauge setting facility for crosslinked polyethylene and allied polymers.
DIMENSION :
2.0”X 4” EN-8 Rollers with Knurling On Upper Roller And Special Epoxy Coating On The Lower Roller.

HIGH PRECISION MACHINE DESIGNED FOR
The Preparation Of Test-Pieces For Determining The Mechanical Properties Of Cable Insulation And Sheathing Materials, Such As :
- PE, XLPE, PVC
- RUBBERS: NATURAL OR SYNTHETIC
- HALOGEN FREE MATERIALS
- SYNTHETIC ELASTOMERIC MATERIALS
- MAXIMUM HARDNESS OF THE PRODUCT <65 SHORES D

ADVANTAGES
1) The high quality of the test-pieces obtained brings a significant narrowing in the spread of test measurements results due to identical cutting, extrusion and pulling directions limiting the notch effect of the suppression of heating during deburring.
2) Safety features like emergency stop, paddle switch and sample insertion window.

MAIN DATA

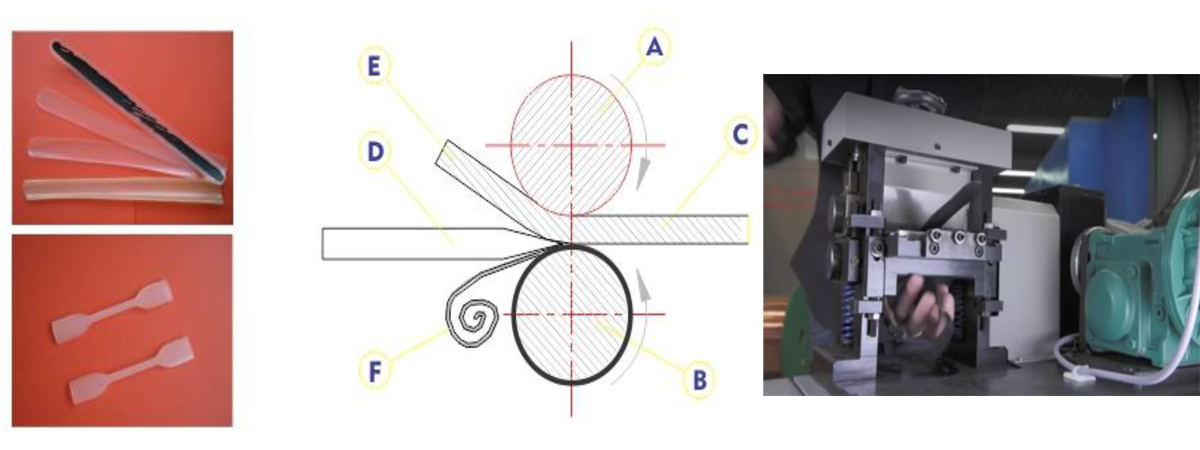

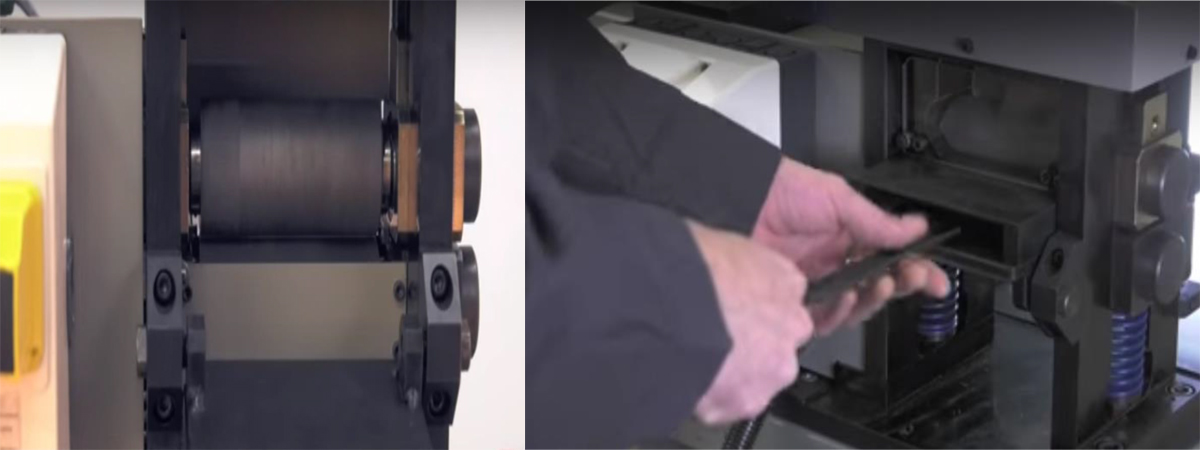

1) Two rolls of useful width 100 mm (4''), one in steel scored (a), the second epoxy covered (b), drive the sample to prepare (c) against the cutting edge of the fixed blade (d).
2) Exceptionally high level of sharpness of the BLADE allowing the shaving of strips of min. thickness 1.0 mm and eliminating final grinding operation.
3) The Precision of the Adjustment allows to obtain a final strip of 1.0 to 2.0 mm thickness with perfectly parallel faces (e) (precision better than 0.2 mm fully conformed with international standard IEC 811-1-1.
4) L X W X H : 600 X 650 X 1200 MM APPROX.
WEIGHT : 220 KG
POWER SUPPLY : 3 X 380 VOLTS – 50 HZ (+ EARTH, NEUTRAL)
